With the automatic CIW 6.2 / 6.3 IPC weighing system, you can weigh tablets, dragées, capsules and similar products during or after the production process.

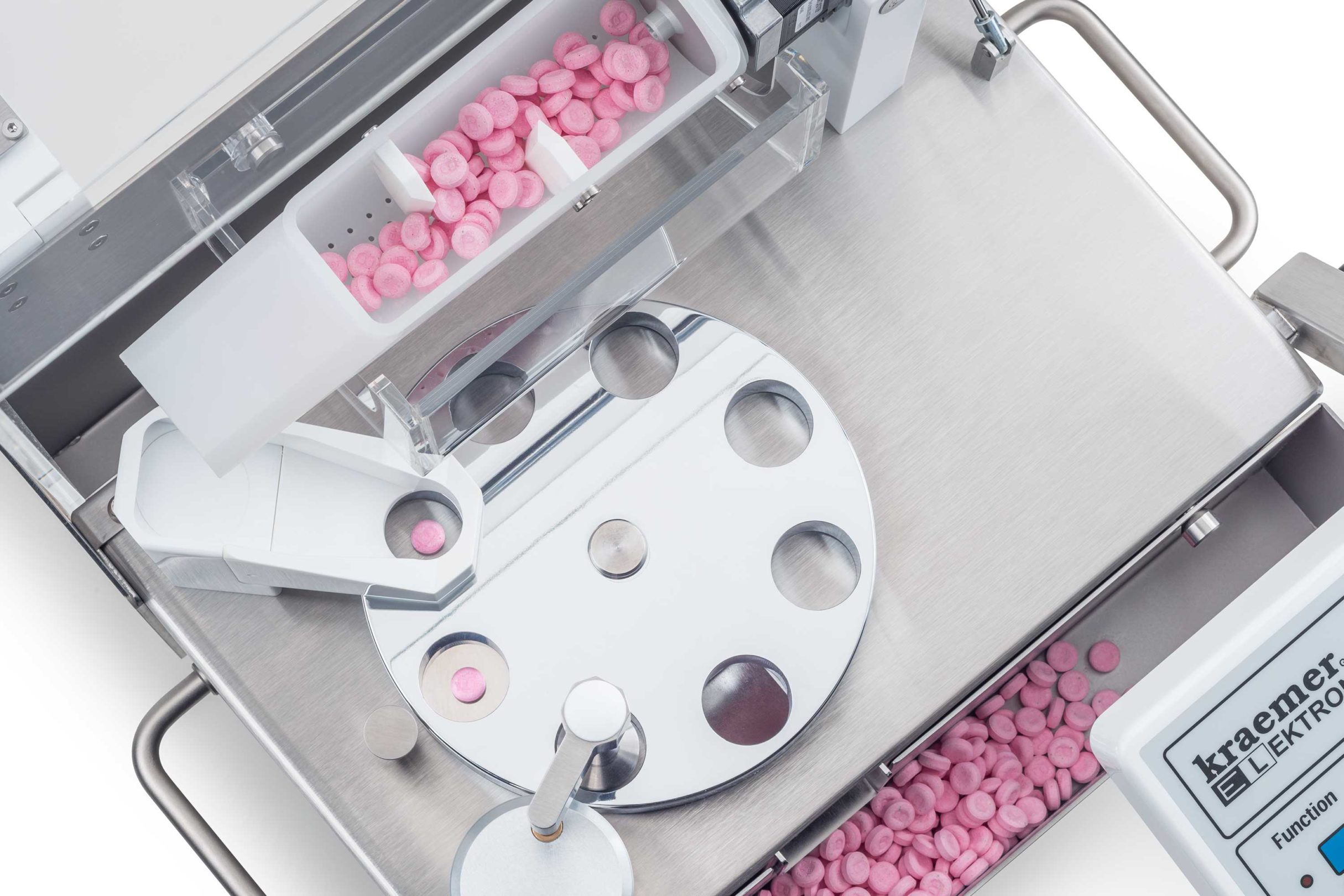

The standard unit is based on Kraemer's UTS tablet testing systems and features a tablet separating system and a special transport starwheel for precisely positioning the specimen on the integrated scale.
All parts requiring cleaning can be removed quickly and easily with no need for tools.
The CIW 6.3 IPC model is largely identical to the CIW 6.2 IPC, except that it additionally features a precise measuring device for determining the tablet thickness.
- Lab tester with TTS11 software, 21 CFR Part 11 compliant.
- Online monitoring device connected to a tablet press. Sampling can be initiated either from the production machine or via our TTS11 software.
ADVANTAGES
- Solid industrial design
- Reliable, rapid weighing
OPTIONS
- TTS11 software, 21 CFR Part 11 compliant
- 12-station feeder
- 12-station sample collector
- Single air conveyor system
- Double air conveyor system
- 3-way sorting diverter
With the CIW 6.2 / 6.3 IPC you can create and measure up to 2 test classes
MODEL |
WEIGHT |
THICKNESS |
|---|---|---|
| CIW 6.2 IPC | ||
| CIW 6.3 IPC |
Model |
|---|
| CIW 6.2 / 6.3 |
| W x D x H (mm): 440 x 490 x 470 |
| Weight (kg): 30 |
Fast, precise weighing of specimens with the automatic CIW 6.2 / 6.3 IPC weighing system
Kraemer Elektronik bestsellers
CIW 6.x-12FS IPC
With 12-station feeder
CIW 6.x-S10 IPC
Dust sealed design
Customized solutions
If you wish, you can obtain special solutions for your specific requirements. Here are a few examples:
CIW 6.2 IPC | |
|---|---|
| S9 | For mini tablets only |
| S9 -12F | For mini tablets with 12-station feed |
| S13 | Direct feed |
| S14 | 3-way sorting diverter in outlet chute |
| S15 | 5-way sorting diverter in outlet chute |
| S16 | With conveyor belt feed |
