With the automatic weighing system CIW 7.2 / 7.3 LAB you weigh tablets, dragees, capsules and similar products. Based on the UTS tablet testing systems by Kraemer Elektronik, the standard unit offers a tablet separation system and a special transport star for precise positioning of the test specimen on the integrated scale.
The CIW 7.2 / 7.3 LAB in the laboratory version is now equipped with the database-driven, intuitive all-in-one touch software and no longer requires additional software solutions for most areas of application.
The functionality of the software can be extended modularly – matching your needs and requirements.
Alternatively, you can expand the CIW 7.2 / 7.3 LAB weighing system with a 12-station feeder and/or a 12-station collector to perform multiple defined tests (12-station feeder) in one measuring cycle. All cleaning-related parts can be easily and quickly disassembled without tools.
The CIW 7.3 LAB model is nearly identical to the CIW 7.2 LAB, but additionally features a precise measuring device for thickness determination.

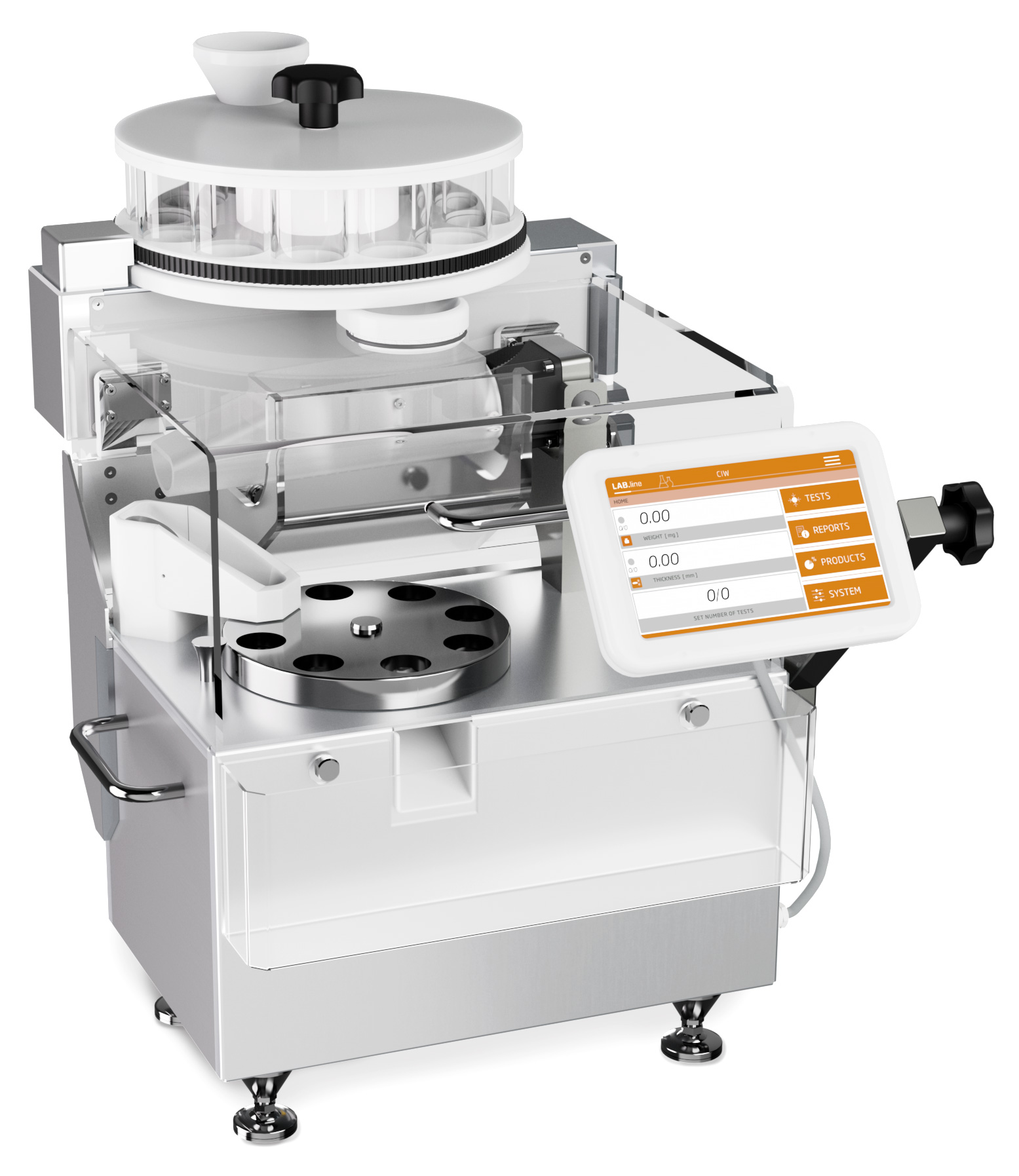

CIW 7.2 LAB as standard unit
ADVANTAGES
- Intuitive touchscreen operation
- Modularly expandable, database-driven All-in-one touch software
- Interfaces: USB and LAN
- Solid construction
OPTIONS
- 12-station feeder
- 12-station collector
- License: FDA 21 CFR Part 11 (including audit trail, batch report, user management)
- Licenses: TTS11 interface, user management, import and export (LIMS, CSV), IQ /OQ
- Further software licenses on request
With the CIW 7.2 / CIW 7.3 LAB you can create and measure up to 2 test classes.
MODEL |
|---|
| CIW 7.2 LAB version: Weight |
| CIW 7.3 LAB version: Weight, thickness |
MODEL |
|---|
| CIW 7.2 LAB |
| W x D x H (mm): 477 x 478 x 464 |
| Weight (kg): 30 |
MODEL |
|---|
| CIW 7.2-12F LAB with feeder |
| W x D x H (mm): 477 x 660 x 597 |
| Weight (kg): 38 |
MODEL |
|---|
| CIW 7.2-12SR LAB with collector |
| W x D x H (mm): 494 x 634 x 482 |
| Weight (kg): 42 |
MODEL |
|---|
| CIW 7.2-12FSR LAB with feeder and collector |
| W x D x H (mm): 494x 814 x 615 |
| Weight (kg): 30 |
MODEL |
|---|
| CIW 7.3 LAB |
| W x D x H (mm): 477 x 478 x 464 |
| Weight (kg): 30 |
MODEL |
|---|
| CIW 7.3-12F LAB with feeder |
| W x D x H (mm): 477 x 660 x 597 |
| Weight (kg): 38 |
MODEL |
|---|
| CIW 7.3-12SR LAB with collector |
| W x D x H (mm): 494 x 634 x 482 |
| Weight (kg): 42 |
MODEL |
|---|
| CIW 7.3-12FSR LAB with feeder and collector |
| W x D x H (mm): 494x 814 x 615 |
| Weight (kg): 30 |

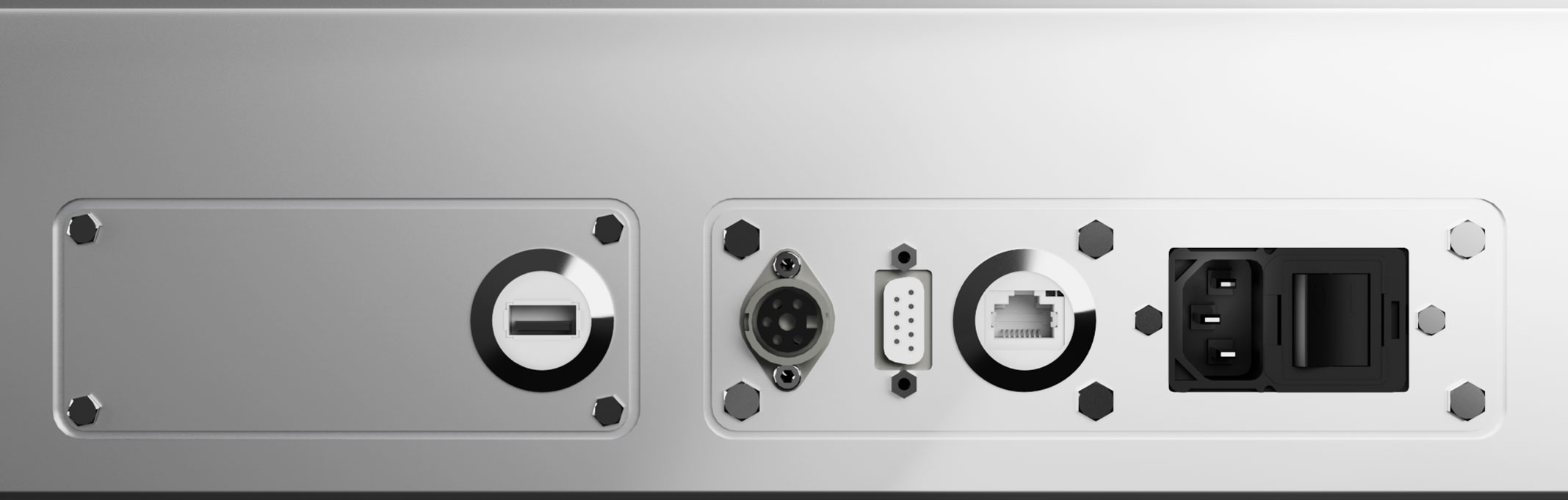

Ports CIW 7.2 / 7.3 LAB,
back side
The CIW 7.2 / 7.3 LAB is available in various type options

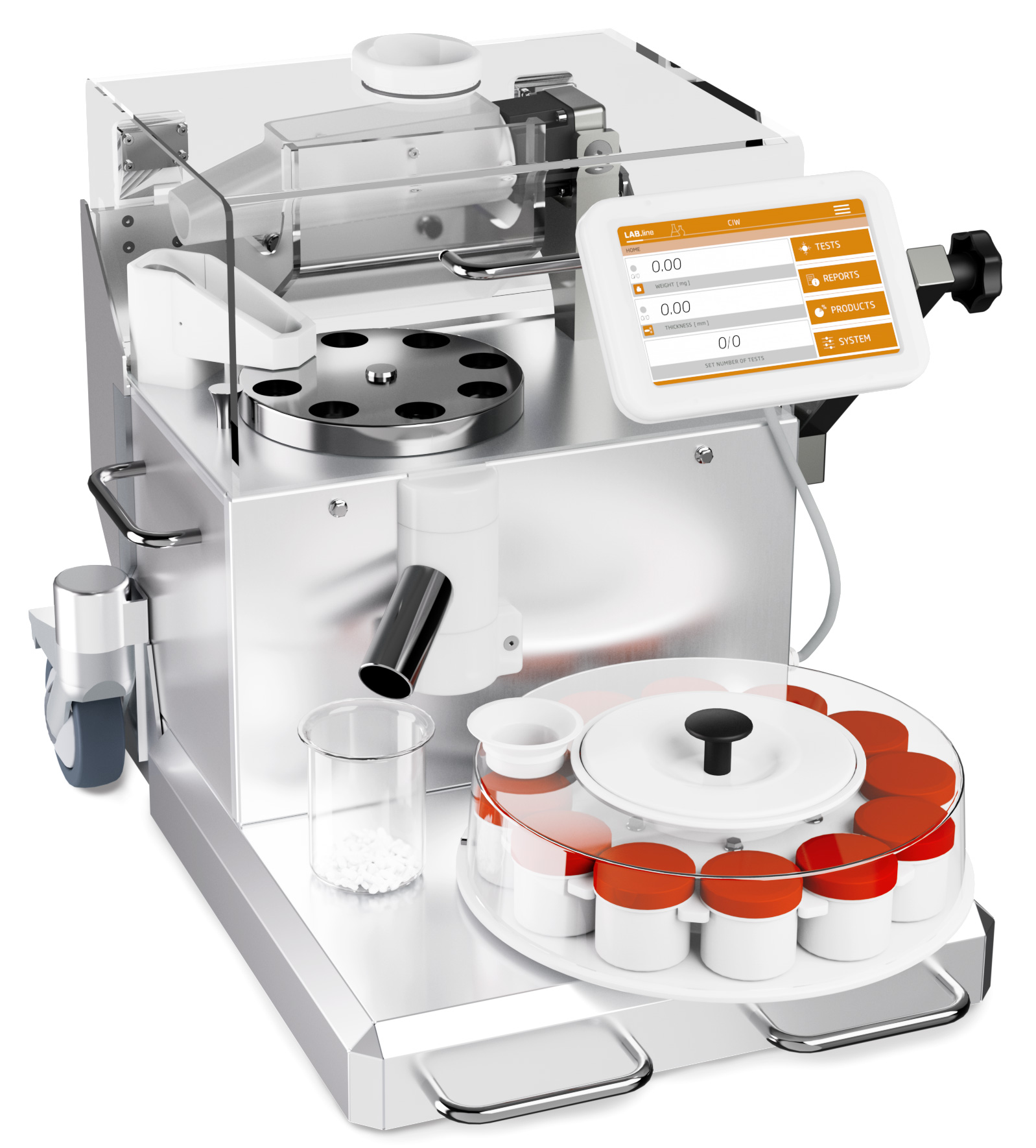

CIW 7.2-12F LAB
Type option: With feeder
CIW 7.2-12SR LAB
Type option: With collector

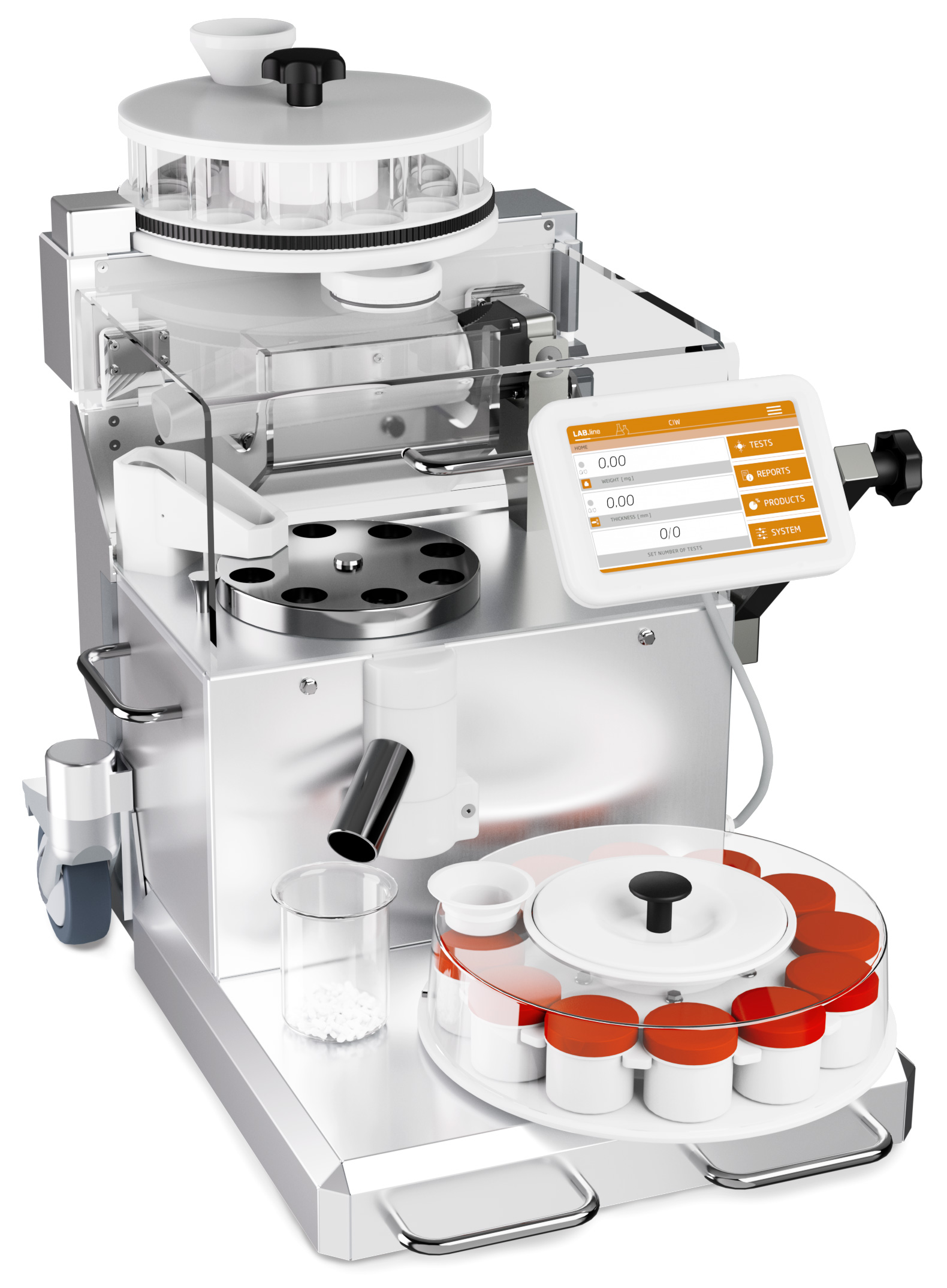

CIW 7.2-12FSR LAB
Type option: Complete system with feeder and collector
