LabScanner Plus® is a compact and versatile material measurement and identification system specifically designed for automatic, fast, accurate and reliable acquisition of a high number of reference data.
At the heart of this solution are near-infrared spectral sensors that have a proven track record in obtaining highly accurate measurement data under laboratory conditions – but in the case of the NIRONE sensors, in a miniaturized, robust and cost-effective way.
The specimen are fed into the device, separated, weighed, accurately positioned and measured by eight near-infrared spectral sensors. Each tablet is irradiated once and its unique pattern (spectrum) is recorded. All measurement data is available for JCAMP-DX-, CSV-, TSV or LIMS-file for export to an offline system. In addition, a batch report can be generated in PDF format.
A successful partnership between two experts
The development of this solution is the culmination of a successful partnership between two experts in their fi eld: Kraemer Elektronik GmbH, the specialist for measurement and testing technology of tablets (bulk solids), and Spectral Engines GmbH, the developer of cloud & IT solutions in combination with MEMS-based spectroscopy systems.
LabScanner Plus® with funnel and sideways waste container
The new LabScanner Plus® measurement and identification system: find out more in the product video
By loading the video, you agree to Vimeo's privacy policy.
Learn more
BENEFITS
- High tablet throughput
- Autonomous operation
- Fast measuring time
- No preparation of the samples
- Savings on shipping and external laboratory analysis costs
- Protection of recipes (Composition is not read out)
- Recognition of fakes /substandard products
- Automatic and precise positioning of specimens
- Particularly accurate spectrum recording due to darkening
- Continuous monitoring of the samples
- Tablet sizes from 3 mm to 25 mm
- Split waste bin and configurable tablet ejection
- Intuitive touchscreen operation
- Modular expandable, database-driven All-in-one touch software
- Clean design
- Interfaces: USB and LAN
OPTIONS
- Tablet ejection into solid containers
- License: FDA 21 CFR-Part 11 (including audit trail, batch report, user management)
- Licenses: User management, Export (JCAMP-DX, CSV, TSV, LIMS), IQ/OQ
- Further software licenses on request
The LabScanner Plus® analyzes all tablet shapes up to 25 mm
MODEL |
|---|
| LabScanner Plus®: Weight, Spectral Identification |
MODEL |
|---|
| LabScanner Plus® |
| W x D x H (mm): 320 x 320 x 470 |
| Weight (kg): 26 |

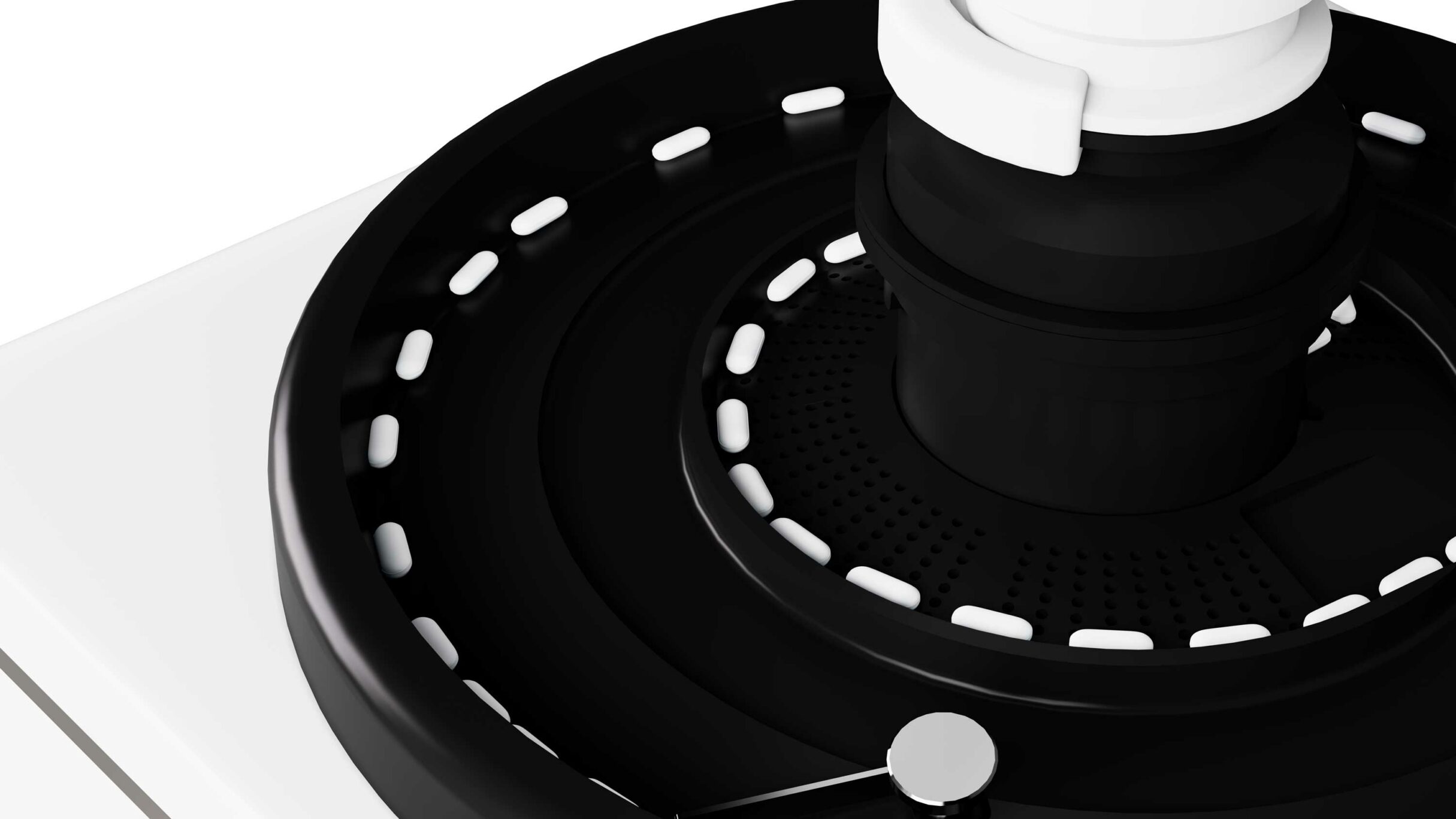

Separation of tablets in the LabScanner Plus®
The LabScanner Plus® is particularly suitable for the automatic, fast, accurate and reliable acquisition of a large amount of reference data. With the new separation solution, all tablet shapes up to 25 mm can now be analyzed and weighed.
Identification by NIR-spectroscopy

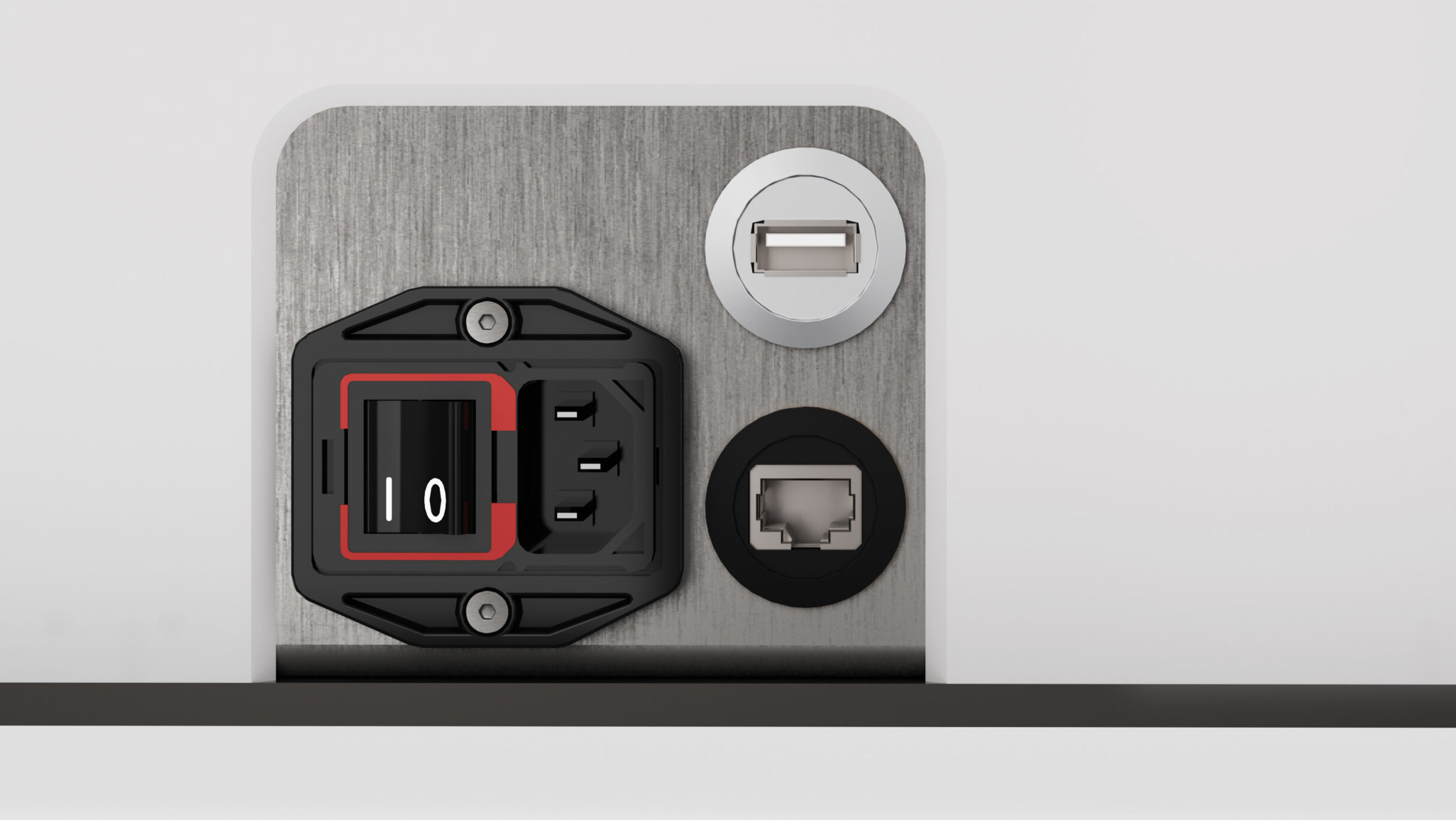

Ports of the LabScanner Plus®,
back side
