    UTS IP65 V2

    Automatic tablet testing system with protection rating IP65

    The UTS IP65 is designed for operation in insulators or washing bays, and features a pressure­equalization ­function. The UTS IP65 is largely identical to the UTS IP-LR, but the following features set it apart:

    • External operation (display and control unit outside the insulator)
    • Encapsulated weighing device
    • Wash down available

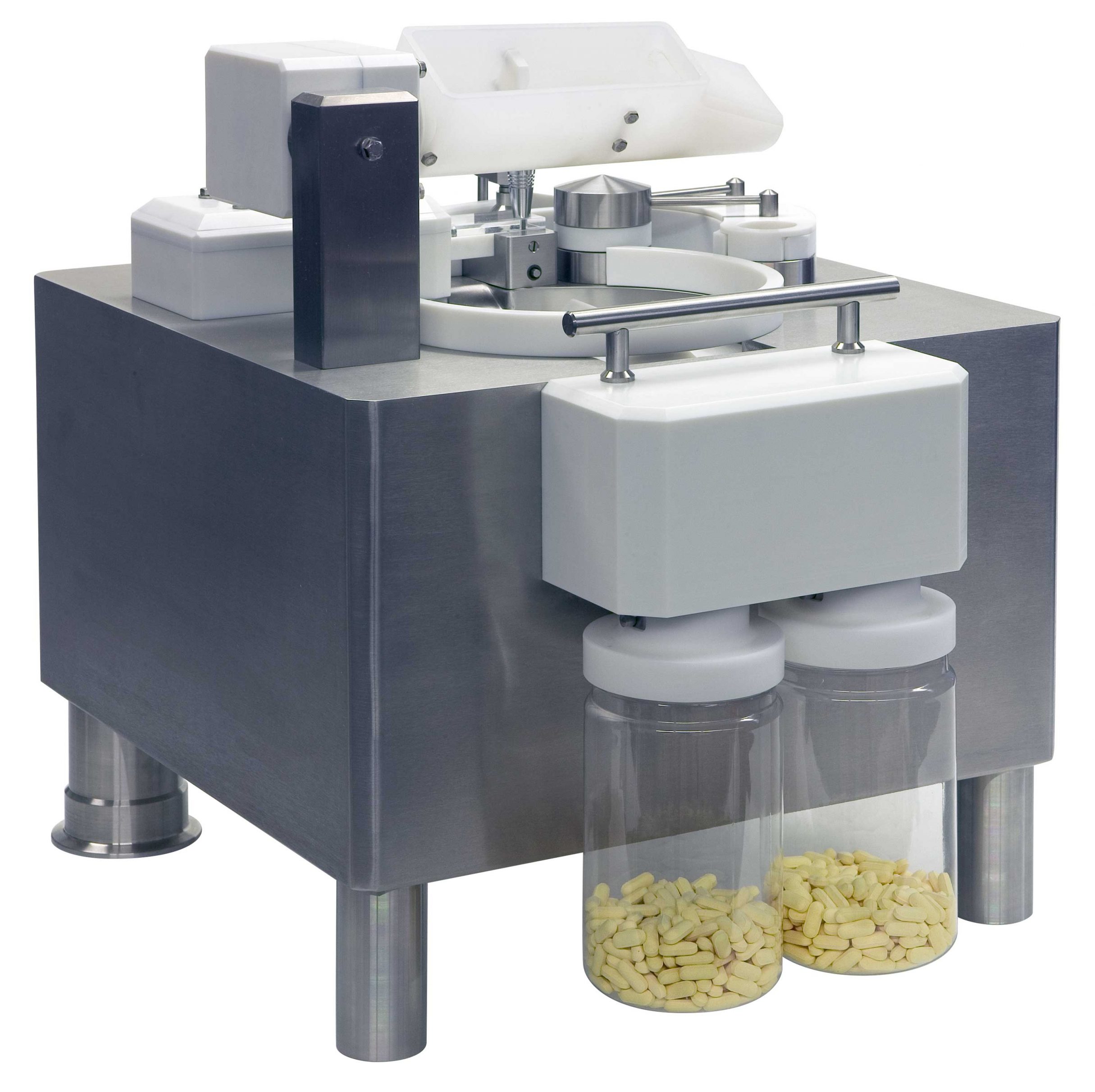

    UTS IP65, Kraemer Elektronik

    Version for insulator. Connections via Triclamp DIN DN50


    • No tools required to remove parts for cleaning
    • The test area can be cleaned extremely easily and thoroughly
    • Integrated specimen orientation


    • PH21 software, 21 CFR Part 11 compliant
    • Single air conveyor system
    • Double air conveyor system

    With the UTS IP65 V2 you can create and measure 5 test classes



    Härte-Messung, Kraemer Elektronik GmbHHärte-Messung, Kraemer Elektronik GmbH


    Oblong-Tabletten, Länge, Kraemer Elektronik GmbHOptionale Weiten-Messung, Kraemer Elektronik GmbH


    Messung der Dicke, Kraemer Elektronik GmbHMessung der Dicke, Kraemer Elektronik GmbH


    Durchmesser, Kraemer Elektronik GmbH, TablettenprüfsystemeDurchmesser, Kraemer Elektronik GmbH, Tablettenprüfsysteme


    Gewichtmessung, Kraemer Elektronik GmbHGewichtmessung, Kraemer Elektronik GmbH


    UTS IP65 V2



    UTS IP65 V2
    W x D x H (mm): 420 x 400 x 450
    Weight (kg): 40
    Control unit
    W x D x H (mm): 350 x 185 x 135
    Weight (kg): 2.5
    IPC.line UTS IP65i, Tablet testing system for industry, Kraemer Elektronik

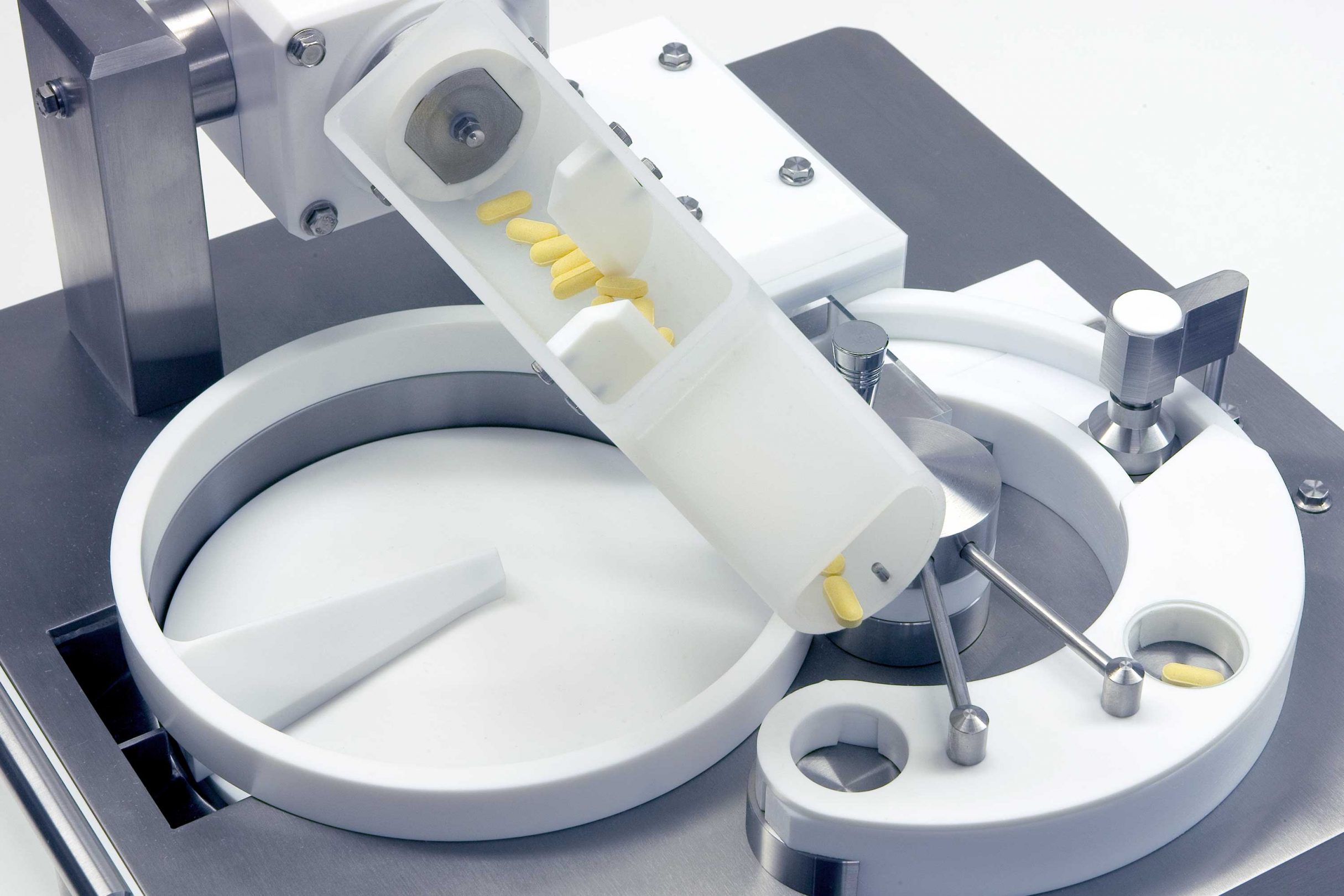

    Patented, integrated distribution plate.
